Hendre Corrugated Shed Module: Roof Unit - Single - 1:43.5 Scale (7mm:1')

This roof module comprises:

• Main roof panel
• 2 x dummy tie beams

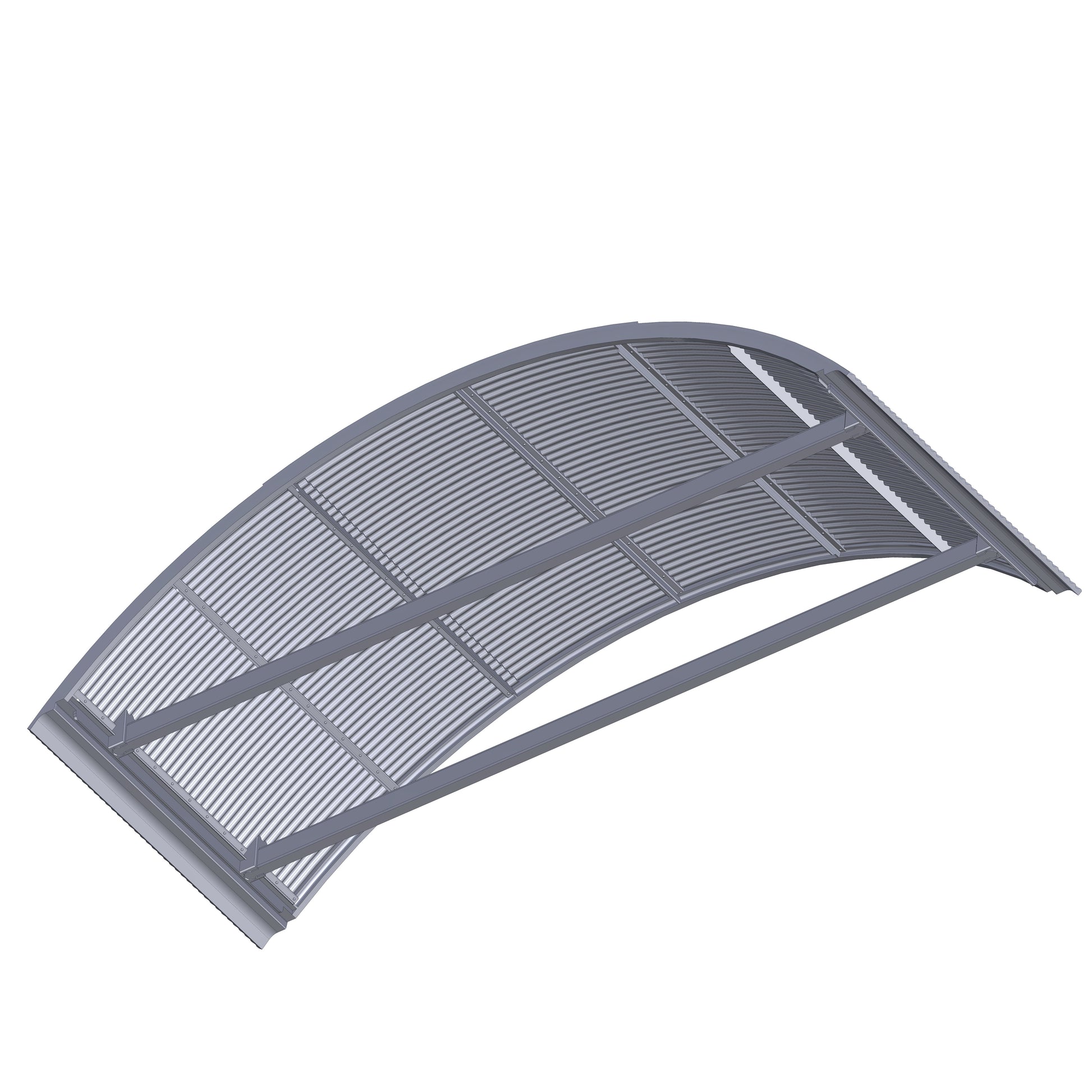

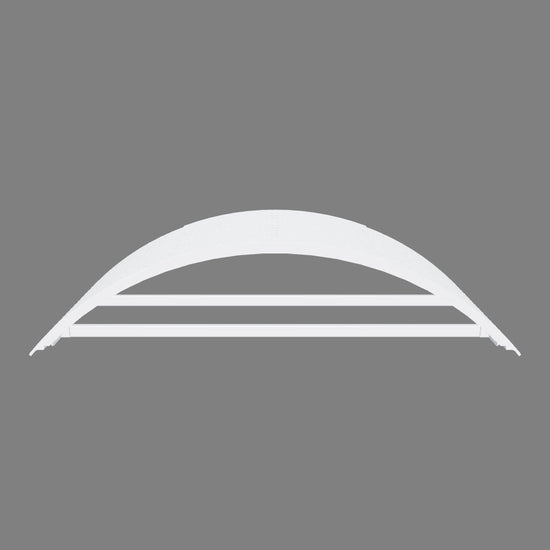

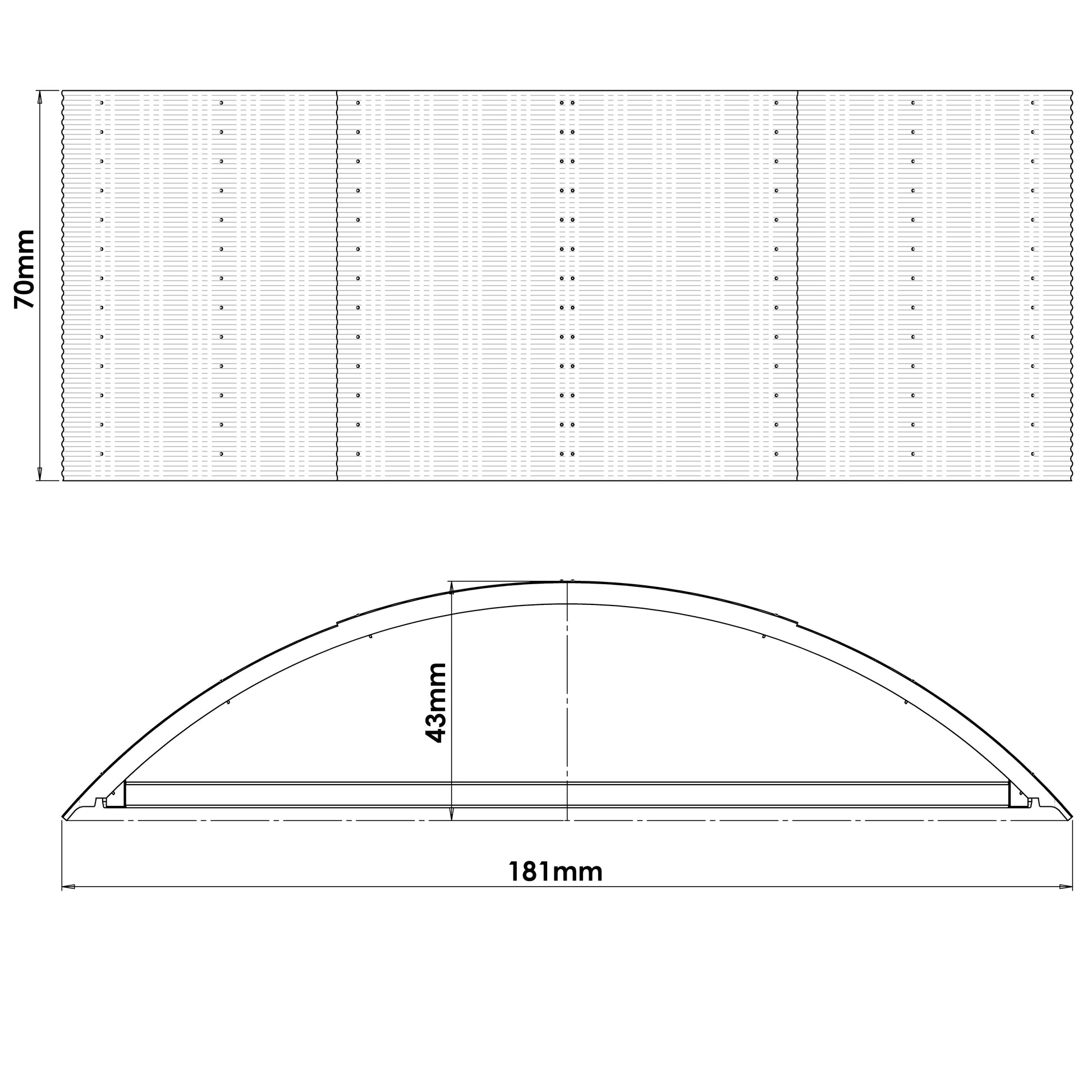

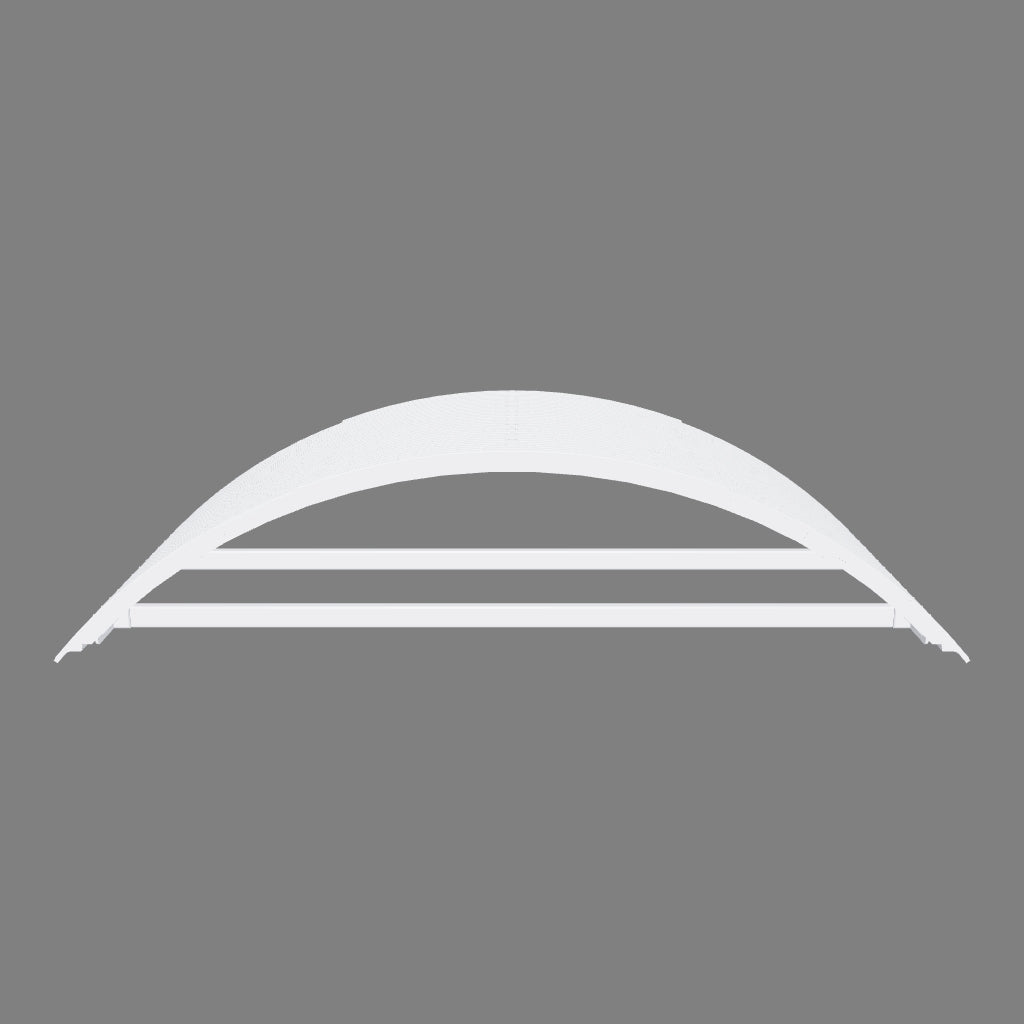

The width of the corrugated roof panel allows you to extend the roof of the building by one bay width of 70mm (or a scale 10').  The Roof Unit comprises the full span corrugated roof with internal purlin detail and two tie beams.

The tie beams are intended as non-scale items that are used to hold the roof shape during assembly and also allow the roof unit to be easily removed if non-permanent assembly is required.  The beams can generally be left in place unless a fully detailed and visible interior is required.  In that case they can be removed, providing the roof edges are rigidly restrained some other way.

The Roof Unit is shipped with the beams pushed into place for strength, but not bonded in order to allow you to remove them as required.

Basic assembly is required.

There is no separate instruction sheet for this product but the general sections and the side panel related sections of the full Hendre Shed Instructions still apply and you can access those instructions by following the download link below.

All components are made from durable grey SLA resin and are supplied unpainted for you to finish to match your model period and location.

As a component of the Hendre Shed range this module represents the construction of a typical corrugated roof section.
